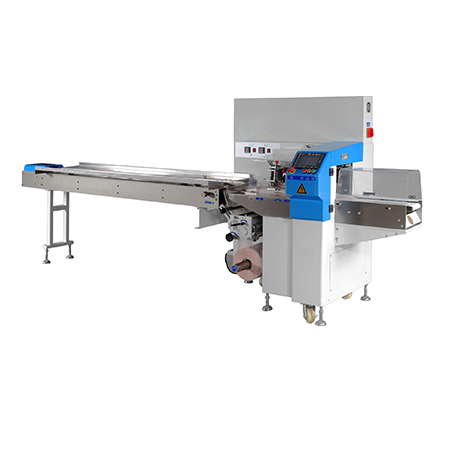

Inverted Flow-Wrapper Packaging Machines (Servo-Driven High-Speed)
MODEL: Various
The Horizontal Flow-Wrapper Packaging Machine DK-220XSE by WrapSense is ideal for: Brownies, Snack Cakes, Wafers, Edibles, CBD, Muffins Cookies, Cakes, Ice-Cream, Donuts, Meal-Kits, Produce, Fruits, Vegetables, Breads, Pastries, Chocolate, Truffles, Keto Snacks, Air Fresheners, Masks, and More. Just ask us, we can likely package it.
Machinery Inverted Flow-Wrappers
Industries Flow-Wrapper, Inverted Flow Wrapper
DETAILS
FEATURES & BENEFITS:
- Large User-friendly interface control for convenient operations
- Stainless Frame and Surfaces for maximum hygiene and durability
- Memory function makes the machine ideal for flexible packaging operations
- Overload-Sensing function for each servo motor prevents parts and product from being damaged in advance
- Auto-splicer option available for higher speed operation and cost saving
- Adjustable forming box make the production flexible
- Self-diagnosis function allows for easy troubleshooting
- Durable, Servo Motors. High productivity, and low noise
OPTIONAL ACCESSORIES:
- Auto-feeding system
- Date coder
- No product-no bag
- Splicer
SPECIFICATIONS
| Model | WS-23000I3SP | WS-33000I3SP | WS-43000I3SP |
| Speed | 25-230 bag/min | 25-230 bag/min | 25-230 bag/min |
| Film Roll Width | Max 220mm | Max 320mm | Max 430mm |
| Bag Length | 50-6000mm | 60-6000mm | 80-6000mm |
| Bag Width | 30-100mm | 35-140mm | 50-180mm |
| Max. Product Height | 5-35mm | 5-50mm | 5-60mm |
| Max. Roll Diameter | Max 300mm | Max 300mm | Max 300mm |
| Voltage/Frequency/Power | 220V, 50/60Hz, 3.9kw | 220V, 50/60Hz, 3.9kw | 220V, 50/60Hz, 3.9kw |
| Dimensions | (L) 4240 × (W) 920 × (H) 1340 | (L) 3940 × (W) 880 × (H) 1520 | (L) 3940 × (W) 880 × (H) 1520 |
| Machine weight | 400Kg | 430Kg | 430Kg |
